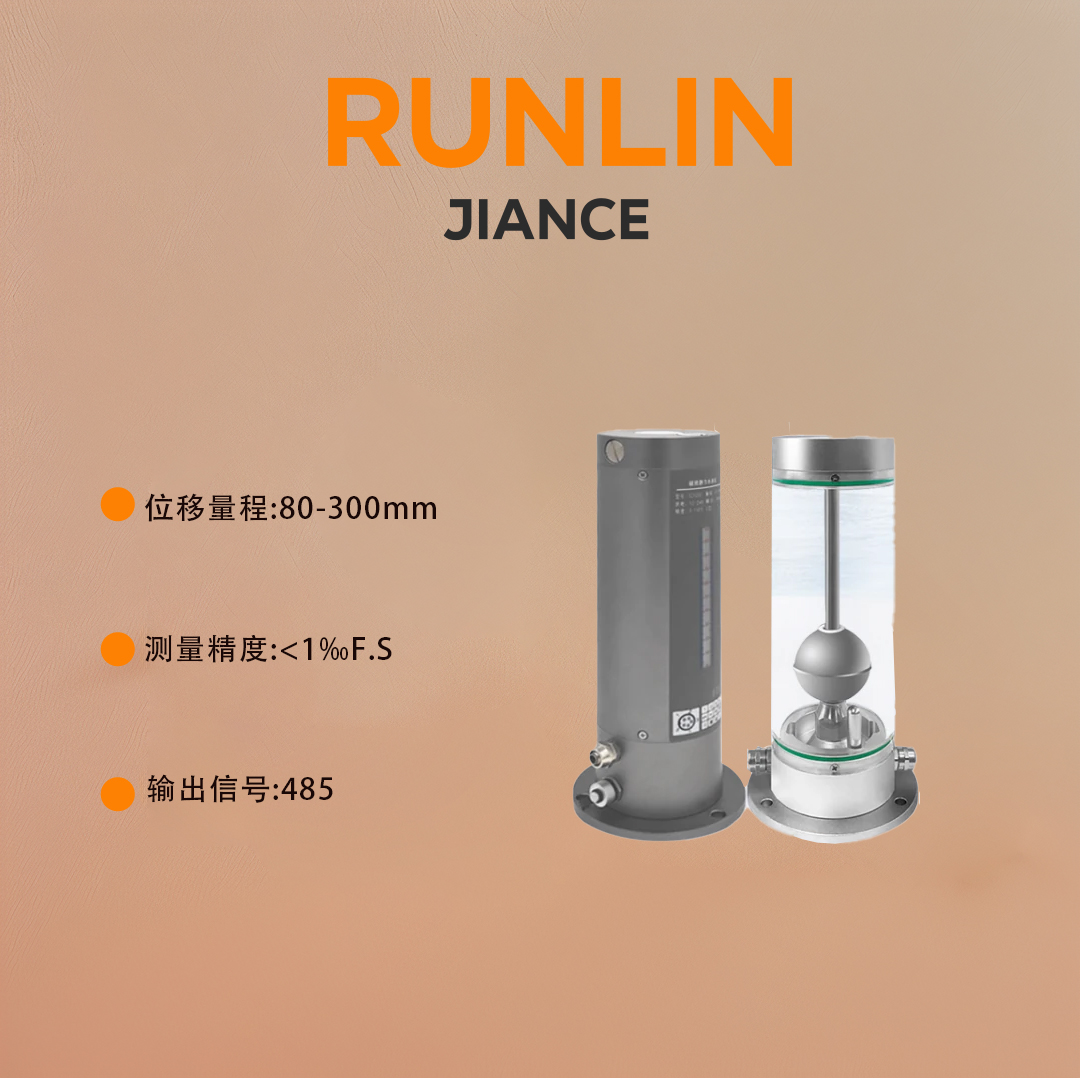

Magnetostrictive static level
Date:2025-01-27    0

Product Introduction of Magnetostrictive Static Level

The magnetostrictive static level, as an advanced system specially designed for high-precision liquid level measurement, demonstrates excellent performance in measuring height differences and their changes, and is a key instrument for achieving accurate measurement of multi-point relative settlement.
This system innovatively utilizes magnetostrictive technology. In practical applications, multiple containers of static level gauges are tightly connected through liquid pipes to construct a unified liquid level monitoring network. The liquid level inside each container is accurately detected by a magnetostrictive liquid level sensor, and the float inside the sensor moves synchronously in real time according to the dynamic changes of the liquid level. With this clever design principle, the liquid level changes at each measuring point can be accurately measured, providing reliable data support for settlement analysis.

Performance characteristics

Ultra high precision measurement: With remarkable high-precision characteristics, the detection accuracy can reach 1% FS, ensuring that accurate liquid level and settlement data can be provided to users in various complex measurement environments, meeting the needs of professional projects with extremely high measurement accuracy requirements.

Long service life: By adopting advanced non-contact measurement methods, it fundamentally avoids component wear caused by mechanical friction, greatly extending the service life of the instrument, reducing equipment replacement frequency, and lowering long-term usage costs.

Highly stable and reliable: It has excellent environmental adaptability, high temperature resistance, pressure resistance, and corrosion resistance. Whether in special working conditions of high temperature and high pressure, or in harsh environments with corrosive media, it can always maintain a stable working state, ensuring the reliability and continuity of measurement data..

Signal output advantages: Directly output absolute signals without signal amplification processing, reducing the accumulation of errors in signal transmission and processing, and also eliminating the tedious work of regular calibration, providing users with a more convenient and efficient user experience..

High cost performance option: While ensuring excellent performance, it has extremely high cost performance and can adapt to various application scenarios and project budgets.. Moreover, its installation process is simple and fast, without the need for complex installation techniques and professional tools, greatly shortening the project implementation cycle and improving work efficiency.

Parameter performance

ItemItem

parameter value

Power supply

Default24VDC (Optional12VDC)

Measurement accuracy

<1F.S

Repetitive error

≤±0.002% F.S

Displacement range

80-300mm

Output signal

485Output

Protection level

IP67

Operating temperature

-40~+85

Temperature coefficient

0.007% F.S/C
