Differential pressure static level
Date:2025-01-27    0

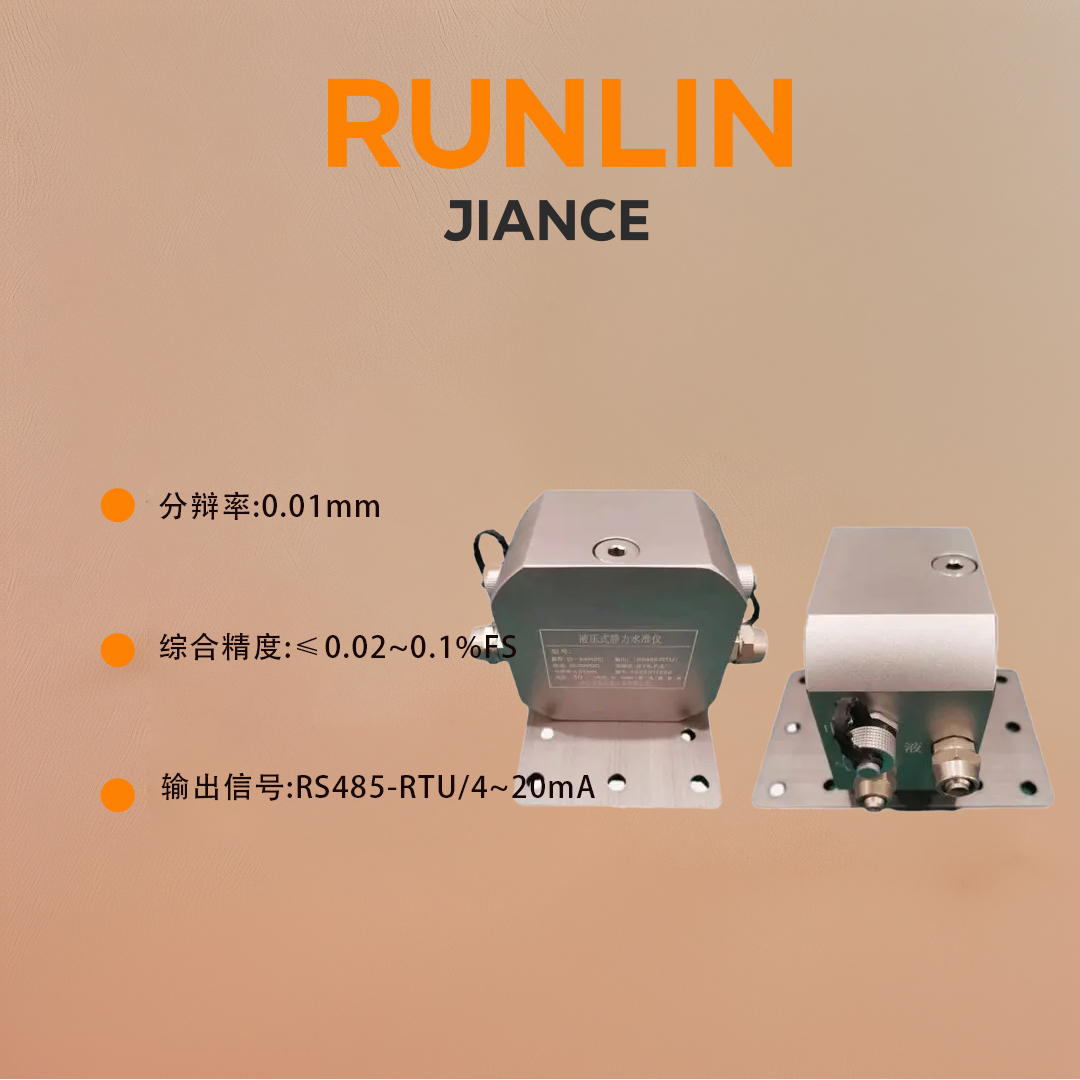

Product Introduction of High Precision Differential Pressure Static Level

The high-precision differential pressure static level, as a precision measuring instrument carefully developed based on the principle of connectors, plays a key role in the field of settlement monitoring. It accurately measures the changes in liquid level height of several interconnected storage tanks, including the storage tank installed at the measured point and the liquid tank serving as the measurement base point (fixed point). Based on the principle that the liquid in the connected tank has equal pressure on the same horizontal plane in equilibrium, it cleverly converts the relative changes in liquid level height into the relative settlement changes of each storage tank installation position, providing reliable data support for various engineering measurements and structural monitoring.

Performance characteristics

Low power and efficient operation: Adopting advanced low-power design concepts, the instrument can maintain a stable working state during long-term operation, effectively reducing energy consumption and maintenance costs, ensuring continuous and stable data collection in various complex environments.

Industrial grade sturdy quality: Following strict industrial design standards, it has excellent high and low temperature resistance and can work normally in extreme temperature environments, whether it is hot desert areas or cold polar environments, it can cope with them with ease.. At the same time, the instrument is suitable for various harsh environments such as high humidity, strong winds, and sand, demonstrating excellent environmental adaptability.

IP68 top-level protection: Strictly manufactured according to IP68 design standards, it has excellent protection performance.. This means that the instrument can completely prevent dust from entering, and long-term immersion in water at a certain depth will not affect its normal operation, effectively resisting various harsh natural conditions and complex industrial environments, ensuring the reliability and stability of the instrument.

Large measurement range and high precision: With the ability to measure a large range, it can meet different engineering scales and measurement needs.. At the same time, the instrument is compact in size, easy to install and carry, and will not cause excessive burden on the monitored object. In addition, it also has high repeatability and can maintain consistent high accuracy in multiple measurements, ensuring the accuracy and reliability of measurement data.

Waterproof and lightning protection safety guarantee: Adopting professional waterproof and lightning protection structure design, effectively avoiding damage to the instrument caused by rainwater erosion and lightning impact.. When used in the wild or outdoor environment, it can provide comprehensive safety protection for the instrument, ensuring its normal operation under adverse weather conditions and guaranteeing the continuity and integrity of measurement data.

Convenient Installation and Maintenance: The design focuses on the convenience of installation, with simple and easy to understand operation, without the need for complex installation processes and professional tools. Ordinary staff can quickly complete the installation.. At the same time, the maintenance of the instrument is also very simple, reducing the cost and difficulty of use, improving work efficiency, and providing users with a more convenient user experience.

Performance Performance

Measuring medium

Liquid

Pressure form

Differential pressure

Pressure range

0~200mmH20,0~1000mmH20,

0~20mH20 (Customizable within the range)

Temperature range

-40 100

Comprehensive accuracy

0.02~0.1%FS

resolution

0.01mm

Output signal

RS485-RTU/4~20mA

Supply voltage

12VDC(7~30VDC)

Compensation temperature

-20~60

Medium temperature

-40~85

ambient temperature

-40~80

Storage temperature

-40~85

Response time

5mS
